Apebox S2X 4K

Apebox S2X 4K is the new competitive UHD DVB-S2X Multistream satellite receiver with Card Reader, and a super powerful H.265 HEVC processor to get the best image quality, fast zapping/menu and the full range of Satellite functions.

Well equipped with Ethernet 100Mbps LAN for IPTV, Internet applications and Streaming in Phones and Tablets; designed in a small and compact box with extraordinary comfortable Remote Control with Hotkeys. Apebox S2X 4K is also compatible with WiFi connections using an external WiFi USB antenna (accessory not included in the pack). Comes with the great Apebox User Interface preinstalled with a nice and intuitive design really easy to use.

Comparative Table

Main DVB Functions

  • 4K UHD HLG HDR10 Digital Satellite Receiver DVB-S2X Multistream H.265/HEVC decoding
  • DVB-S2X QPSK/8PSK/16APSK/32APSK, ACM/VCM
  • Card Reader (CA)
  • Supports Diseqc 1.0, 1.1, 1.2, 1.3 USALS and UNICABLE
  • Resolution: 480p, 576p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz, 1080p/50Hz, 1080p/60Hz, 3840×2160@60Hz
  • Supports Blind Scan, Multi Satellite Search, Multi TP Search, Auto Disecq, and storage up to 6000 channels
  • Auto and Manual channels search
  • PVR and Timeshift
  • Multi language Menu, Audio and Subtitles
  • 7 Days EPG, Teletext
  • Edit Channels and Create Favorite Groups
  • Firmware and Channels Update through USB
  • Recall Function (last channels watched)
  • Media Player and HDD USB supported
  • Parental Control

Main Apps

  • IPTV M3U
  • IPTV Stalker
  • IPTV XTREAM CODES
  • DLNA
  • FTP
  • Youtube, RSS Reader, Weather, Google Maps
  • Games (Tetris, Snake, Othello)

Specifications

Dimensions
Long 146 mm
Width (With Tuner) 120 mm
Height 34 mm
Weight 245 g
Hardware
Chipset ALI M2662
RAM 256 MB DDR3
Flash Memory 8 MB
Software
Operating System Apebox
Interfaces
LNB IN
2x USB 2.0
Card Reader (CA)
Ethernet RJ45 10/100 Mbps Port
AV Out Port
IR Port
RS232 Port
S/PDIF Optical Port
LED Display
HD-OUT 2.0
Sources of Media Content
PC & NAS in a local network, USB devices
Video Decoder
MPEG1
MPEG2
MPEG4
H265
XVID
VC-1
VP8 Simple
AVS
VP9
H264
Audio Decoder
MPEG-1/2 Layer 1 I/II
AAC/HEAAC v1/v2
Dolby Digital (AC3)
Dolby Digital Plus (EAC3)
RealAudio
WMA / WMA Pro
MP3 / OGG / FLAC / APE / ALAC
Mute, Fade & Volume Control Support

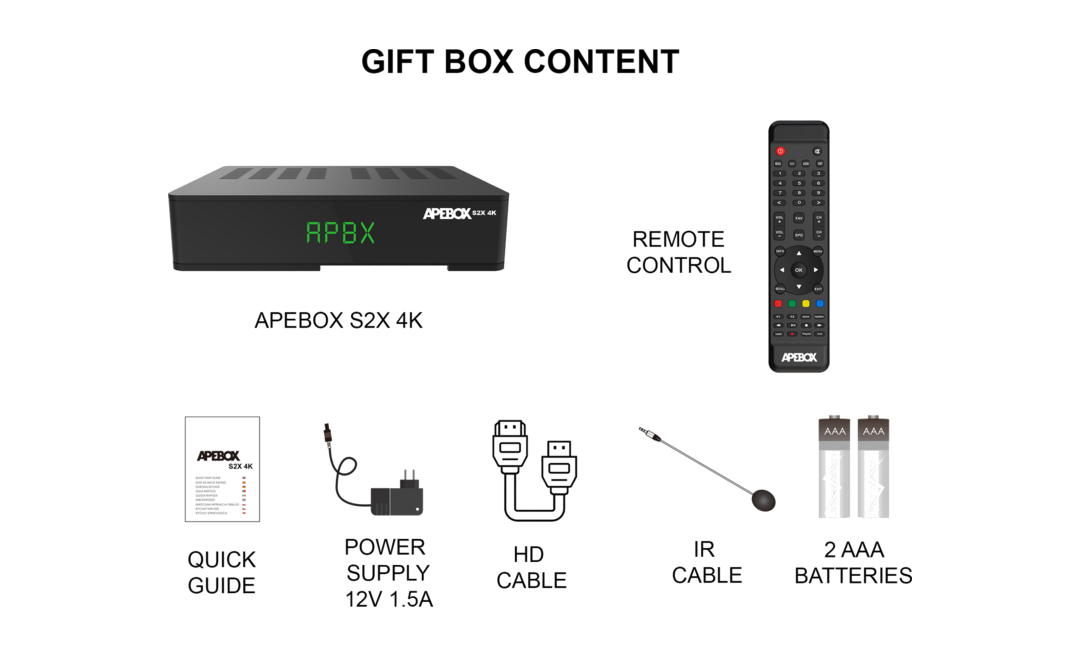

Box Content
Apebox S2X 4K
Quick Guide
Remote Control and 2 AAA Batteries
IR Extender Cable
HD-OUT 2.00 Cable
Power Supply

Downloads

Similar Models

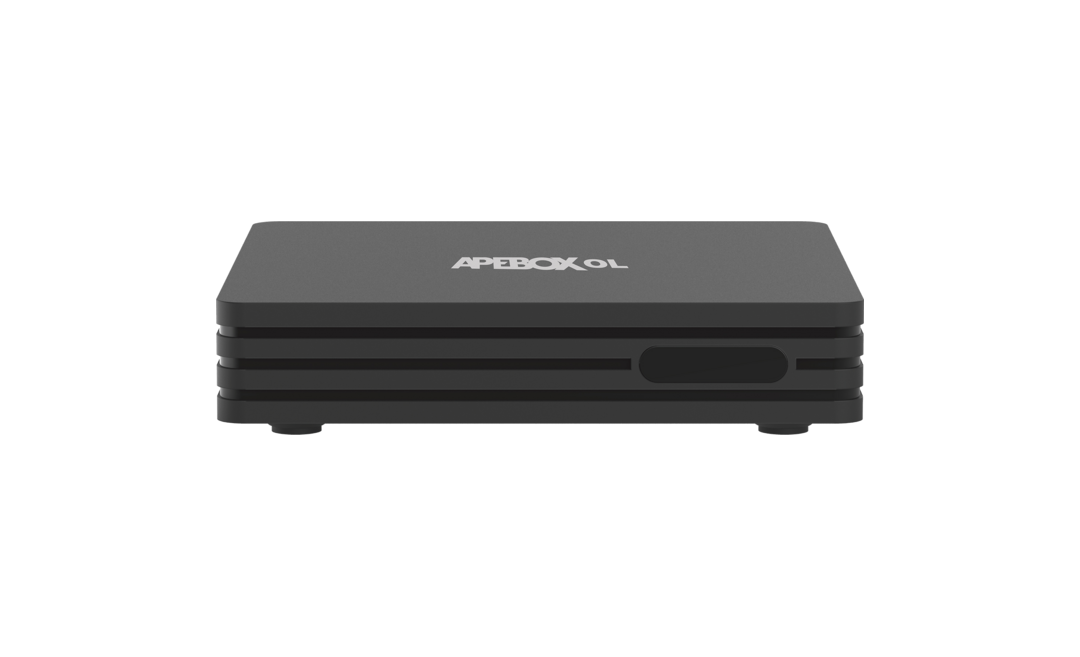

Apebox OL
Tech Specs Apebox OL

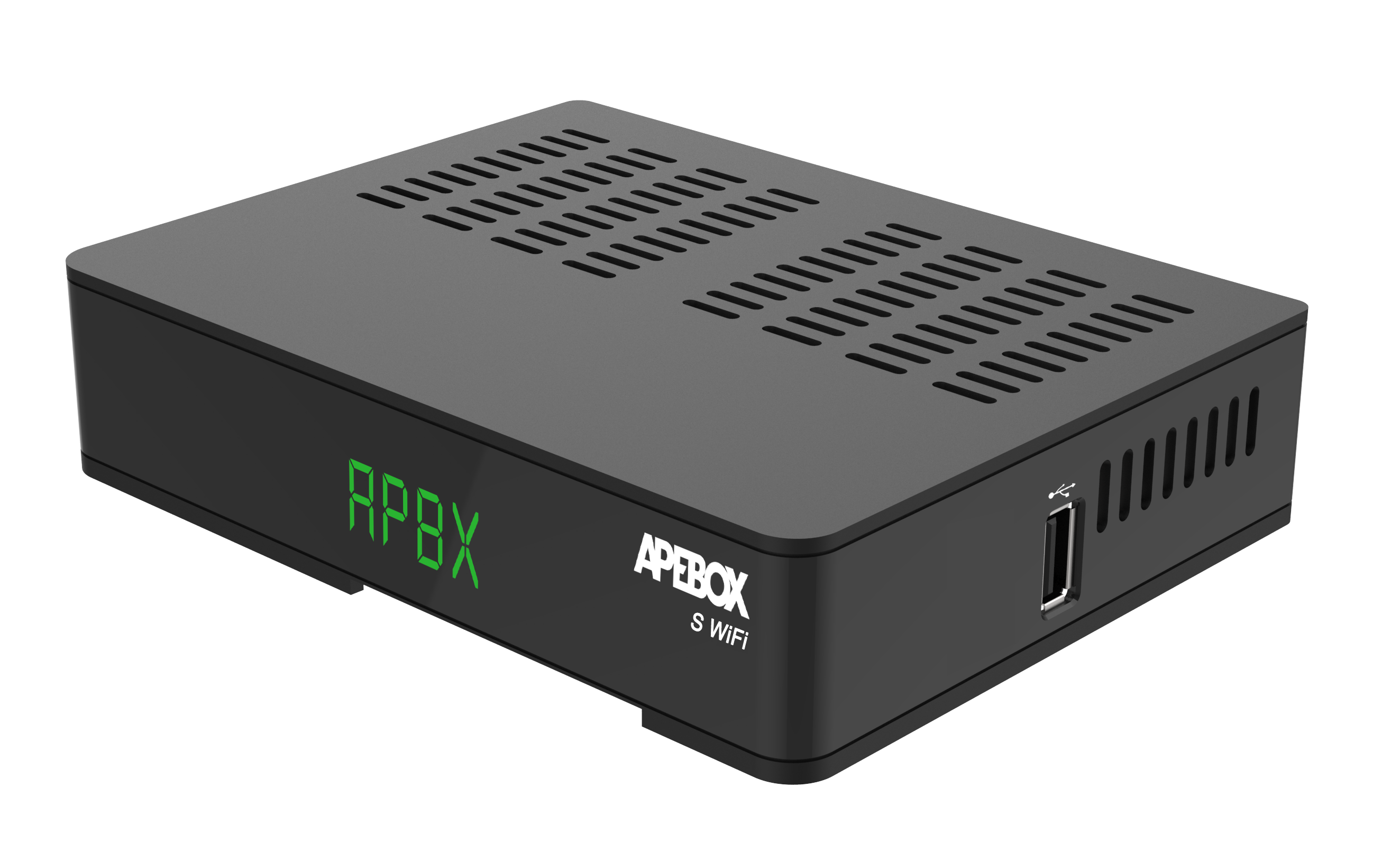

Apebox S WIFI
Tech Specs Apebox S WIFI
Apebox CI
Tech Specs Apebox CI

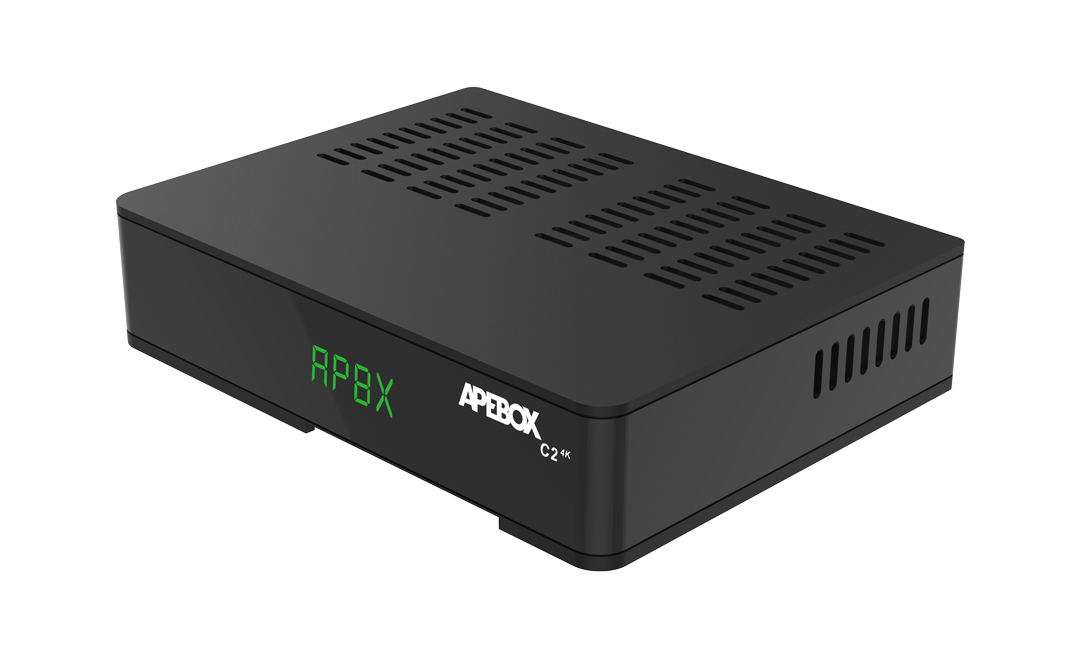

Apebox C24K
